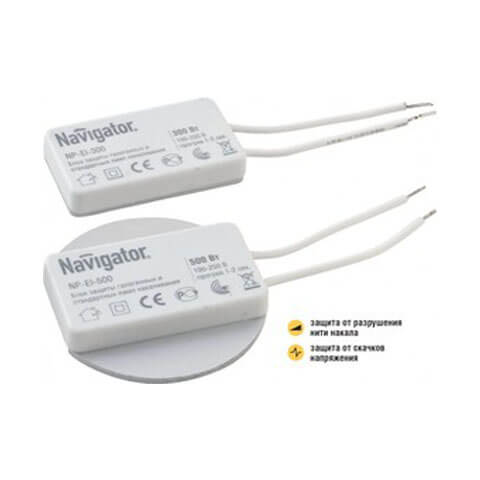

NP-EI-300 (94438)
Device for the smooth inclusion of 300W lamps
Overview: NP-EI-300 (94438), the Navigator NP Series Protection Blocks are designed to prevent frequent burnout of halogen and incandescent lamps and extend their life. In addition to this the protection units are designed for joint operation with incandescent and halogen lamps at 220 V and 12 V. However the device protects the lamps from power […]
Inquire Now
Description
Overview:
NP-EI-300 (94438), the Navigator NP Series Protection Blocks are designed to prevent frequent burnout of halogen and incandescent lamps and extend their life. In addition to this the protection units are designed for joint operation with incandescent and halogen lamps at 220 V and 12 V. However the device protects the lamps from power surges and provides a smooth heating of the filament during power-ups. Therefore which significantly slows down the process of wear of the filament.
The Navigator NP Series Protection Blocks have a number of design features. Moreover, the construction of an electric circuit on an integrated microcircuit and surface mount elements allowed to minimize the overall dimensions of the modules. Hence significantly increase the reliability of products.
Moreover in more powerful models, a radiator with a larger dispersion area is used. Therefore which more effectively reduces the heat load inside the case and, as a result, increases their service life.
Above all, you can read more about this below:
Protection blocks for halogen and incandescent lam
| Model | Maximum power, W | Lamp start, sec. | Temperature range, ° С | Temperature on the case, no more than ° С | Permissible voltage fluctuations, V | Case dimensions, mm |
| NP-EI-200 | 200 | 1-2 | -20~50 | 70 | 100~250 | 50x28x10 |
| NP-EI-300 | 300 | 1-2 | -20~50 | 70 | 100~250 | 50x28x10 |
| NP-EI-500 | 500 | 1-2 | -20~50 | 70 | 100~250 | 50x55x10 |
| NP-EI-1000 | 1000 | 1-2 | -20~50 | 70 | 100~250 | 50x60x26 |
| Nom. number | 9000114424 |
| Manufacturer | Navigator |
