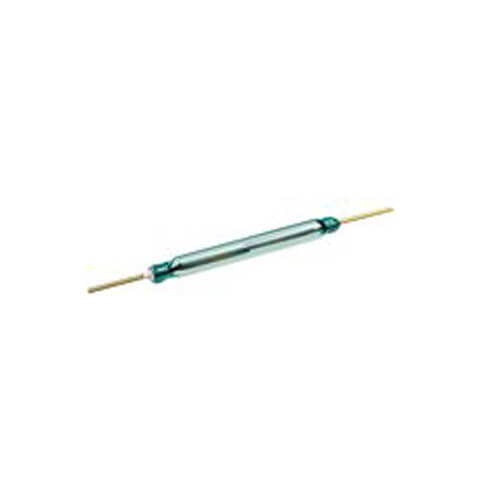

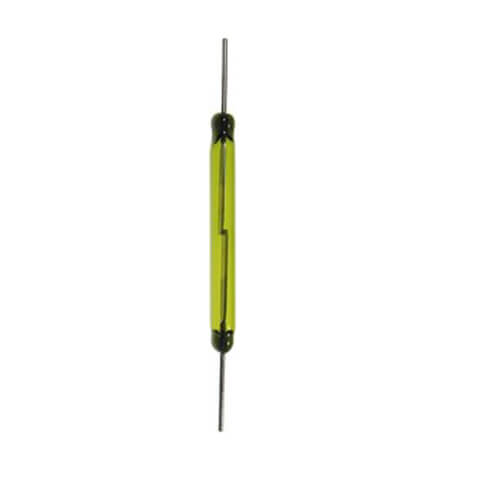

KEM-1 B
Reed switch closing 2A / 300V 50 ... 120 A
- Switched current, A: 2
- Switched voltage, V: 300
- Response time, ms: 2
- Release time, ms: 0.8
- Insulation Resistance, MΩ: 1,000,000,000
- Maximum resistance of electrical contacts, Ohm: 0.1
- Operating temperature, C: -60 … 85
- Contact set: 1 circuit
- Weight g: 3
Inquire Now
Description
A KEM-1 B, magnetically controlled contact (reed switch) is an electric device that changes the state of an electric circuit by mechanically opening or closing it when a control magnetic field acts on its elements, combining the functions of contacts, springs, and sections of electric and magnetic circuits.
The principle of operation of KEM-1 B reed switches is based on the use of interaction forces arising in a magnetic field between ferromagnetic bodies. In this case, the forces cause deformation and displacement of the ferromagnetic current conductors of the electrons.
Nom. number | 20348 |
Manufacturer | Ryazan Plant of Cermet Instruments |
Switched current, A | 2 |
Switched voltage, V | 300 |
Response time, ms | 2 |
Release time, ms | 0.8 |
Insulation Resistance, MΩ | 1,000,000,000 |
Maximum resistance of electrical contacts, Ohm | 0.1 |
Operating temperature, C | -60 … 85 |
Contact set | 1 circuit |
Weight g | 3 |
