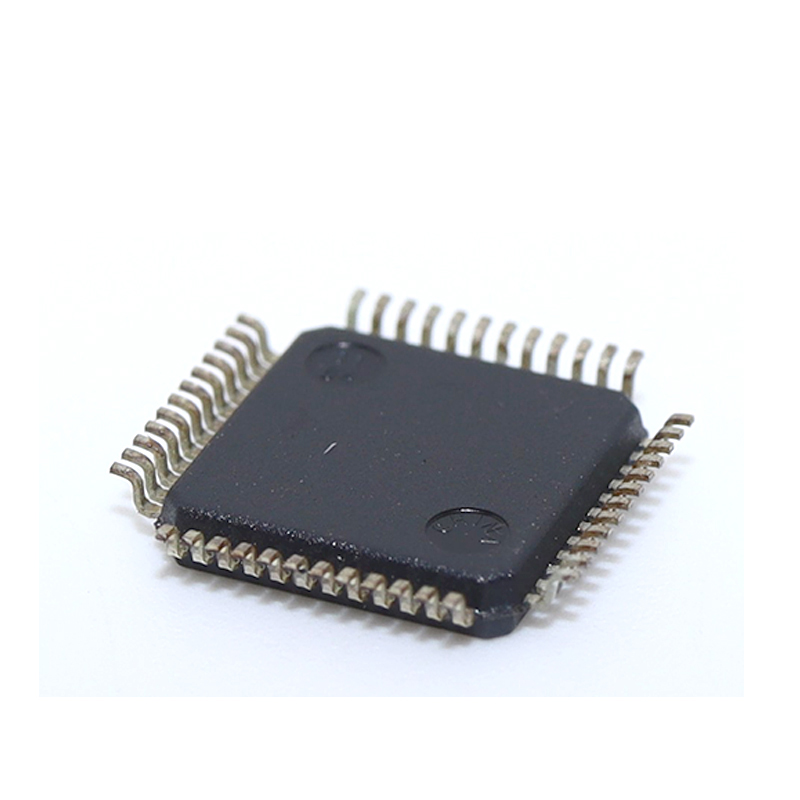

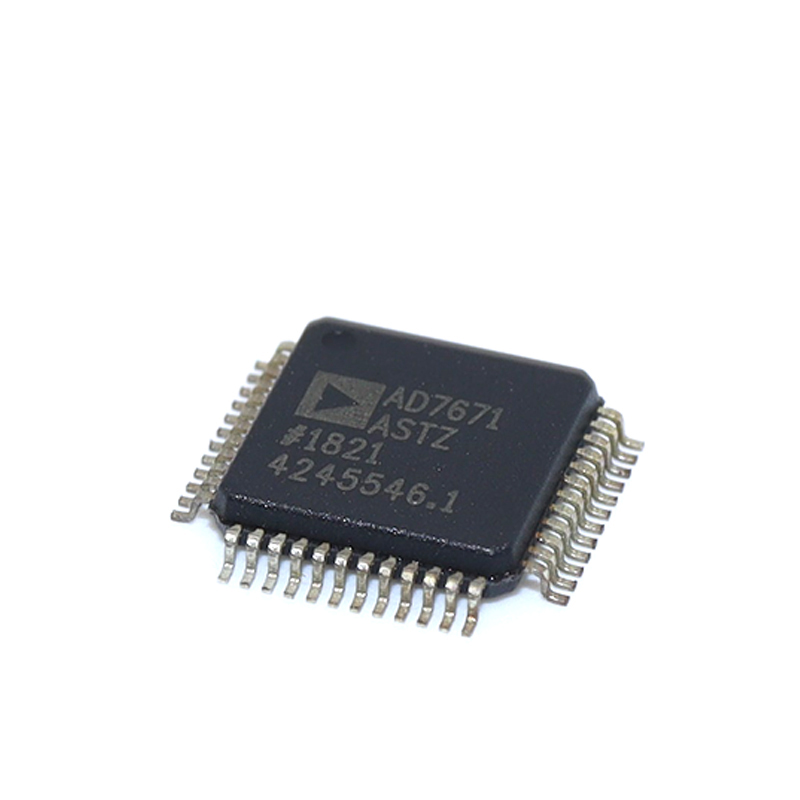

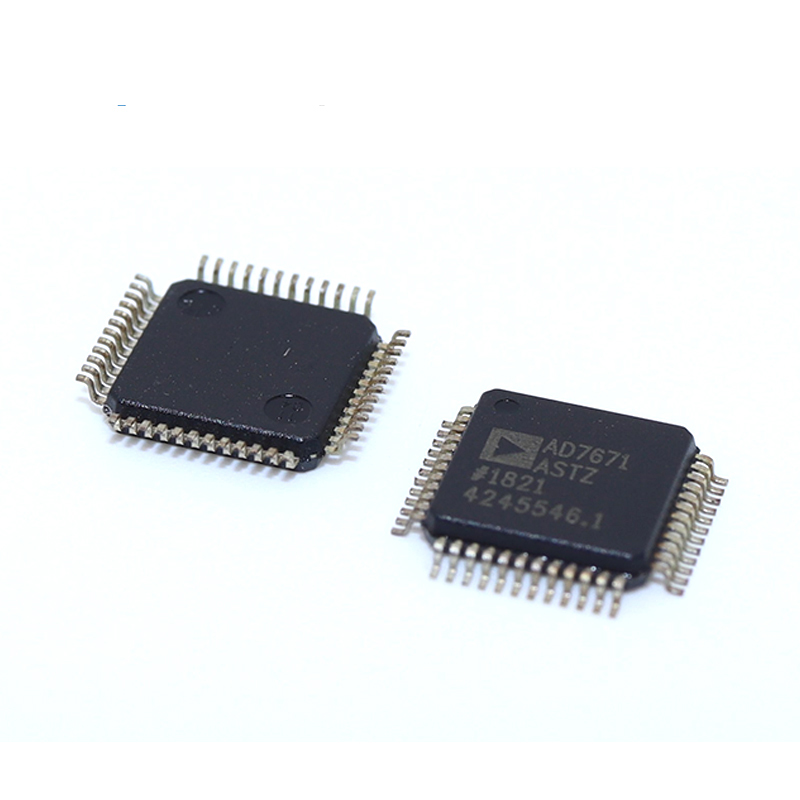

Integrated-Circuit AD7671ASTZ
- Model Number: AD7671ASTZ
- Type: integrated circuit
- Brand Name: Analog Devices Inc.
- D/C: 1821+
- Voltage - Breakdown: standard
- Frequency - Switching: standard
- Power (Watts): standard
- Voltage - Output: standard
- Current - Output / Channel: standard
- Frequency - Cutoff or Center: standard
- Current - Leakage (IS(off)) (Max): standard
Inquire Now
Description
|
Manufacturer:
|
Analog Devices Inc.
|
|
Product Category:
|
Analog to Digital Converter-ADC
|
|
Series:
|
AD7671
|
|
Installation style:
|
SMD/SMT
|
|
Package / Box:
|
LQFP-48
|
|
Resolution:
|
16 bit
|
|
Number of channels:
|
1 Channel
|
|
Interface type:
|
I2C, Parallel, SPI
|
|
Sampling ratio:
|
1 MS/s
|
|
Input type:
|
Differential
|
|
Structure:
|
SAR
|
|
SNR-signal-to-noise ratio:
|
90 dB
|
|
Minimum operating temperature:
|
-40 C
|
|
Maximum operating temperature:
|
+ 85 C
|
|
Package:
|
Tray
|
|
Height:
|
1.4 mm
|
|
Input voltage:
|
2.5 V/5 V/10 V, n++2.5 V/n++5 V/n++10 V
|
|
Length:
|
7 mm
|
|
Number of converters:
|
1 Converter
|
|
Output type:
|
CMOS/TTL
|
|
Power consumption:
|
112 mW
|
|
Type:
|
S/H ADC
|
|
Width:
|
7 mm
|
|
Trademark:
|
Analog Devices
|
|
Reference type:
|
External, Internal
|
|
Development kit:
|
EVAL-AD7671EDZ
|
|
Gain error:
|
+/- 0.76 %FSR
|
|
INL-Integral Nonlinearity:
|
+/- 2.5 LSB
|
|
Humidity sensitivity:
|
Yes
|
|
Number of ADC inputs:
|
4 Input
|
|
Working power supply voltage:
|
5 V
|
|
Pd-power dissipation:
|
125 mW
|
|
Product Type:
|
ADCs-Analog to Digital Converters
|
|
Sample and hold:
|
Yes
|
|
Factory Packing Quantity:
|
250
|
|
Subcategory:
|
Data Converter ICs
|
|
Unit weight:
|
181.700 mg
|
