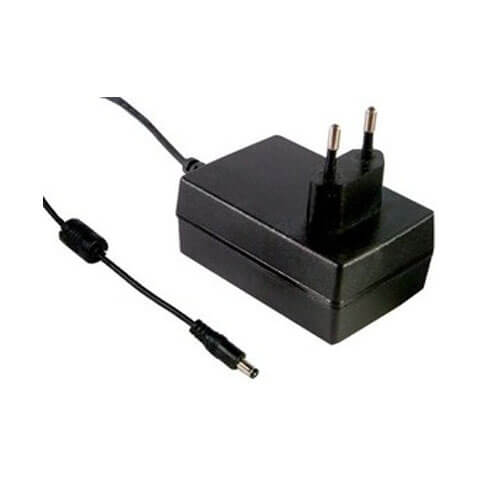

GS18E15-P1J
Power Supply, 15B, 1.2A, 18W (adapter)
- Output voltage, V: fifteen
- Output current, A: 1.2
- Power, W: 18
- Connector: 5.5x2.1
- Weight g: 210
Inquire Now
Description
Overview:
GS18E15-P1J, Channel 1, Uout = 15V, Iout = 0 ... 1.2A, Power: 18 W, Number of outputs: 1
Efficiency: 85%
Ripple level (span): 100 mV
Dielectric strength: input-output: 3000 V AC
1-phase connection
Input voltage AC: 90 ... 264 V (Rated: 230 V)
Input voltage DC: 135 ... 370 V
Protection against: short circuit, overload, overvoltage
Dimensions: 79 x 54 x 33 mm, weight: 0.21 kg
Housing : AC adapter
Operating temperature ranges: 0 ... 40 ° C, Storage: -20 ... 85 ° C
| Nom. number | 9000162773 |
| Manufacturer | MEAN WELL |
| Output voltage, V | fifteen |
| Output current, A | 1.2 |
| Power, W | 18 |
| Connector | 5.5x2.1 |
| Weight g | 210 |
