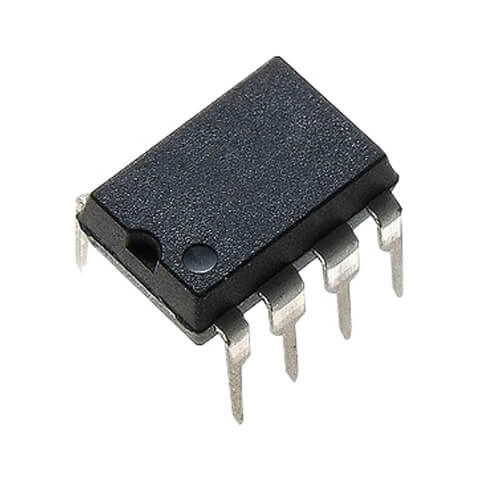

FAN7601N
PWM current controller
- Transducer type: flyback
- The maximum frequency of the converter, kHz: 300
- Maximum converter duty cycle, %: 95
- Failure protection: over temp./volt
- Management features: frequency control, soft start
- Operating temperature, ° C: -25 … + 125
- Case: dip-8 (0.300 inch)
PWM current controller with programmable frequency [DIP-8]
Inquire Now
Description
Description
The FAN7601N is a green programmable frequency current mode PWM controller. It is specially designed for the off-line adapter application and the auxiliary power supplies which require high efficiency at a light load and no load. The internal high voltage start-up switch and the burst mode reduce the power loss. The FAN7601 includes some protections such as latch protection and over voltage protection. The latch protection can be used for over voltage protection and/or thermal protection and so on. And the soft start prevents the output voltage over shoot at start up
| Nom. number | 9000022314 |
| Pr-in | Fairchild |
| Transducer type | flyback |
| The presence of an internal switch | yes |
| The maximum frequency of the converter, kHz | 300 |
| Maximum converter duty cycle, % | 95 |
| Failure protection | over temp./volt. |
| Management features | frequency control, soft start |
| Operating temperature, ° C | -25 ... + 125 |
| Case | dip-8 (0.300 inch) |
| Weight, g | 1 |
| Manufacturer | Fairchild Semiconductor |
