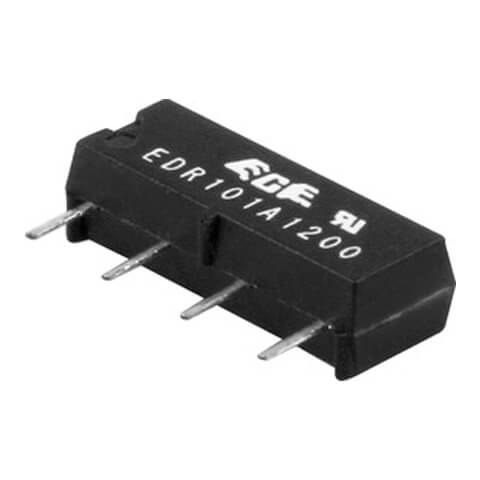

EDR101A1200
Reed relay 12V / 1A, 100V
- Contact set: 1 circuit
- Winding current: constant
- Number of windings: 1
- Tripping voltage, no more, V: 9
- Release voltage, not less, V: 1
- Winding resistance, ohm: 1000
- Rated operating voltage, V: 12
- Maximum working voltage, V: 20
- The maximum switched constant voltage, V: 100
- The maximum switched direct current, And: 1
- Response time, ms: 1
- Release time, ms: 0.5
- Insulation Resistance, MΩ： 100,000
- Maximum resistance of electrical contacts, Ohm： 0.15
- MTBF of at least x10 ^ 6 cycles： 100
- Operating temperature, C： -40 ... 85
- Housing： Sip
- Weight g： 2
Inquire Now
Description
| Nom. number | 33142 |
| Manufacturer | ECE |
| Contact set | 1 circuit |
| Winding current | constant |
| Number of windings | 1 |
| Tripping voltage, no more, V | 9 |
| Release voltage, not less, V | 1 |
| Winding resistance, ohm | 1000 |
| Rated operating voltage, V | 12 |
| Maximum working voltage, V | 20 |
| The maximum switched constant voltage, V | 100 |
| The maximum switched direct current, And | 1 |
| Response time, ms | 1 |
| Release time, ms | 0.5 |
| Insulation Resistance, MΩ | 100,000 |
| Maximum resistance of electrical contacts, Ohm | 0.15 |
| MTBF of at least x10 ^ 6 cycles | 100 |
| Operating temperature, C | -40 ... 85 |
| Housing | Sip |
| Weight g | 2 |
FEATURES of EDR101A1200
- The Miniature, cost-effective switching solution.
- Molded construction for compatibility with automatic board processing.
- Completely washable.
- Dip type construction with the same terminal pitch as ICs or TTLs.
- The high sensitivity allows direct driving by TTL, etc.
- Magnetic shield cover is available.
- Nom. number: 33142
- Manufacturer: ECE
- Contact set1: circuit
- Winding current: constant
