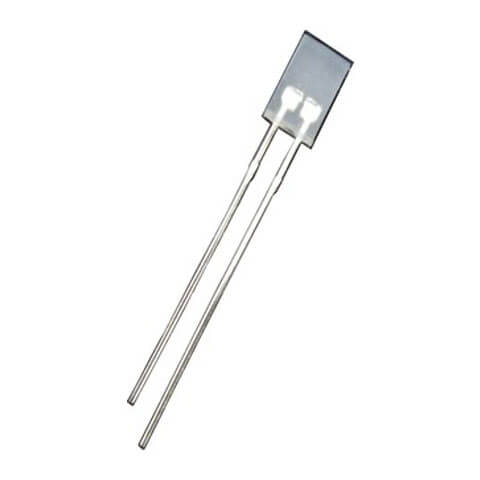

BL-L2506PGC
Rectangular green LED
- Material: ngan
- Glow color: green
- Wavelength nm: 525
- Minimum luminous intensity Iv min., MKd: 400
- Maximum luminous intensity Iv max., MKd: 1000
- at current Ipr., mA: 20
- Visible solid angle, hail: 120
- Lens color: colorless
- Lens shape: rectangular
- Lens size mm: 2x5
- Maximum reverse voltage, V: 5
- Maximum pulse forward current, mA: 150
- Weight g: 0.17
120 ° 2x5x7mm 1000mCd 525nM (Ultra Pure Green)
Inquire Now
Description
BL-L2506PGC LEDs of the L2506 series belong to the type of rectangular LEDs and have a size of 2x5mm with a height of 7mm. To exclude connection errors, the anode has a longer output. They have a large scattering angle of 120 degrees. The light output of these LEDs varies very widely and is displayed in the table. The range of operating temperatures ranges from -40 to +80 degrees.
| Nom. number | 9000061676 |
| Manufacturer | Betlux Electronics |
| Material | ngan |
| Glow color | green |
| Wavelength nm | 525 |
| Minimum luminous intensity Iv min., MKd | 400 |
| Maximum luminous intensity Iv max., MKd | 1000 |
| at current Ipr., mA | 20 |
| Visible solid angle, hail | 120 |
| Lens color | colorless |
| Lens shape | rectangular |
| Lens size mm | 2x5 |
| Maximum reverse voltage, V | 5 |
| Maximum pulse forward current, mA | 150 |
| Weight g | 0.17 |
Features:
- 1.8 mm Round Tower Type LED Lamps..
- Ultra brightness.
- Choice of various viewing angles.
- Full color Display application.
- IC compatible /Low current capability.
- RoHs Compliance
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
