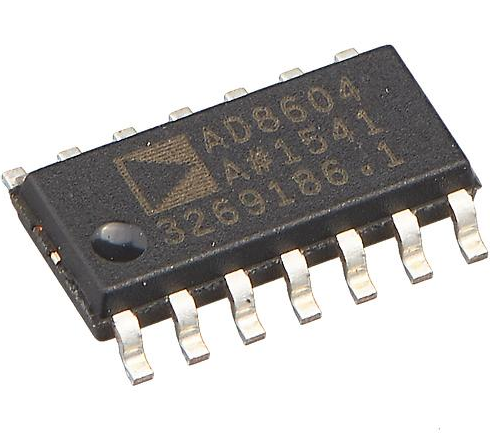

ADI AD8604ARZ Chips

Megatronicka #: AD8604ARZ

Mfr. #: AD8604ARZ

Manufacturer: ADI

Client #:

ADI AD8604ARZ precision amplifiers have 4 channels and an 8.4 MHz bandwidth gain factor. The CMRR is 8, which is a very high value. They are RoHS-compliant and available in different colors and configurations.

Datasheet: AD8604ARZ Datasheet (PDF)

ADI AD8604ARZ specs

Product attribute: Attribute value: Select attribute

Manufacturer: ADI

Product Category: Precision Amplifiers

RoHS: Details

Series: AD8604

Number of channels: 4 channels

GBP - Bandwidth Gain Product: 8.4 MHz

SR - Response rate: 6 V/us

CMRR - Common Mode Rejection Ratio: 89 dB

Output current per channel: 50 mA

Ib - Input Bias Current: 1 nA

Vos - Input Offset Voltage: 80 UV

en - Input Voltage Noise Density: 33 nV/sqrt Hz

Supply voltage - Max: 5.5 V

Supply voltage - Min: 2.7 V

Operating supply current: 750 uA

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Shutdown: No Shutdown

Mounting Style: SMD/SMT

Package/Case: SOIC-14

Packaging: Tube

Brand: ADI

Height: 1.5mm

Input Voltage Range - Max: 5V

Length: 8.75mm

2.7 to 5.5 volts for the operating supply

Outlet Type: Rail to Rail

Product: Precision amplifiers

Product Type: Precision Amplifiers

PSRR - Power Supply Rejection Ratio: 80 dB

QTY: 5000

Subcategory: Amplifier ICS

Type: General Purpose Amplifier

dB Voltage Gain: 98.06 dB

Width: 4mm

Unit Weight: 0.011923 ounces
