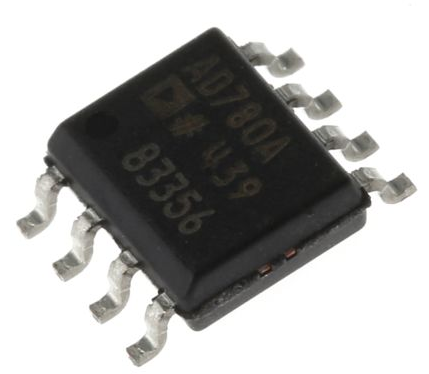

ADI AD780ARZ

Megatronicka #: AD780ARZ

Mfr. #: AD780ARZ

Manufacturer: ADI

Client #:

The AD780ARZ is the latest of the series of precision references in the Megatronicka line. This reference device provides a 2.5V or 3V output voltage that is accurate to 0.04% and has a low-temperature coefficient with a high-accuracy tempco set point.

Datasheet: AD780ARZ Datasheet (PDF)

ADI AD780ARZ specs

Product attribute: Attribute value: Select attribute

Manufacturer: ADI

Product Category: Voltage References

RoHS: Details

Mounting Style: SMD/SMT

Package/Case: SOIC-8

Reference Type: Series Precision References

Output voltage: 2.5V, 3V

Initial accuracy: 0.04%

Temperature coefficient: 7 PPM/C

VREF series - Input voltage - Max: 36 V

Shunt Current - Max: 10 mA

Minimum operating temperature: - 55 C

Maximum operating temperature: + 125 C

Series: AD780

Packaging: Tube

Accuracy: 75uV/mA

Brand: ADI

Height: 1.5mm (max)

Input voltage: 36V

Length: 5mm (max)

Charge regulation: 75 UV/mA

Output current: 10mA

Product: Voltage references

Product Type: Voltage References

9000

Subcategory: PMIC - Power Management Integrated Circuits

Topology: Serial and shunt references

Width: 4mm (max)

Unit Weight: 0.002512 ounces
