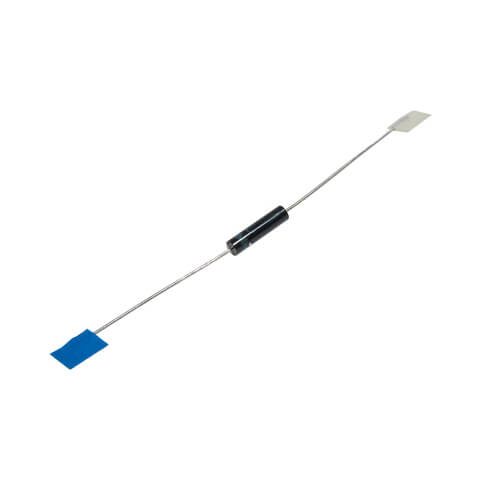

2CL73
High voltage diode 12kV 5mA
-
- Material: silicon
- Maximum constant reverse voltage, V: 12000
- Maximum pulse reverse voltage, V: 12000
- Maximum direct current (rectified for a half-cycle) current, A: 0.005
- The most admissible direct pulse current, A: 0.5
- Maximum reverse current, μA 25g: 2
- MMaximum forward voltage, V: 45
High voltage diode 12kV 5mA [DO-3x10]
Inquire Now
Description
Get 2CL73 now from Megatronika.
| Nom. number | 9000145207 |
| Material | silicon |
| Maximum constant reverse voltage, V | 12000 |
| Maximum pulse reverse voltage, V | 12000 |
| Maximum direct current (rectified for a half-cycle) current, A | 0.005 |
| The most admissible direct pulse current, A | 0.5 |
| Maximum reverse current, μA 25g | 2 |
| Maximum forward voltage, V | 45 |
| At Ipr., A | 0.01 |
| Working temperature, C | -60 ... +100 |
| Mounting method | in the hole |
| Housing | 2cl-10mm |
| Weight g | 0.6 |
| Manufacturer | China |
Features
- Outline Dimensions and Mark
- Supersmall size Unit mm
- High reliability
- High speed switching
Applications
- Rectification for high voltage power supply of color T.V.
- Rectification for high voltage power supply of CRT display.
- Others
